Safety-coupling.comBajolock safety couplings



 PRESSURE EQUALIZING

When opening our patented Dutch development the Bajolock, the pressure is first caught in a safety and automatically equalized. Any potentially harmful rest materials in the system are automatically discarded away from the operator, after which the Bajolock can be easily and safely uncoupled with a short twist.


 DUTCH INVENTION

After a long period of development and testing we can proudly say that the Bajolock is the new safety standard in the Petrochemical industry. Not only is the Bajolock extremely safe, it has many other benefits to the Petrochemical industry such as better Company Performance and a potential reduction in insurance premiums.


 DAMAGE BACK TO ZERO

In the Petrochemical Industry conventional couplings can be very dangerous as pipes or whole systems are often still under pressure when the couplings are opened. As it is often impossible to determine whether or not there is still any pressure on the system, fatal accidents may occur.

ProductImageFull specifications
Bajolock type A
Type Male with female taper thread
Material AISI316L
Diameters 1” - 2” - 3”
Pressure -0.8 till 10 bar
Temperature -29 till 65C		Bajolock type A
Download brochure
Inquiry

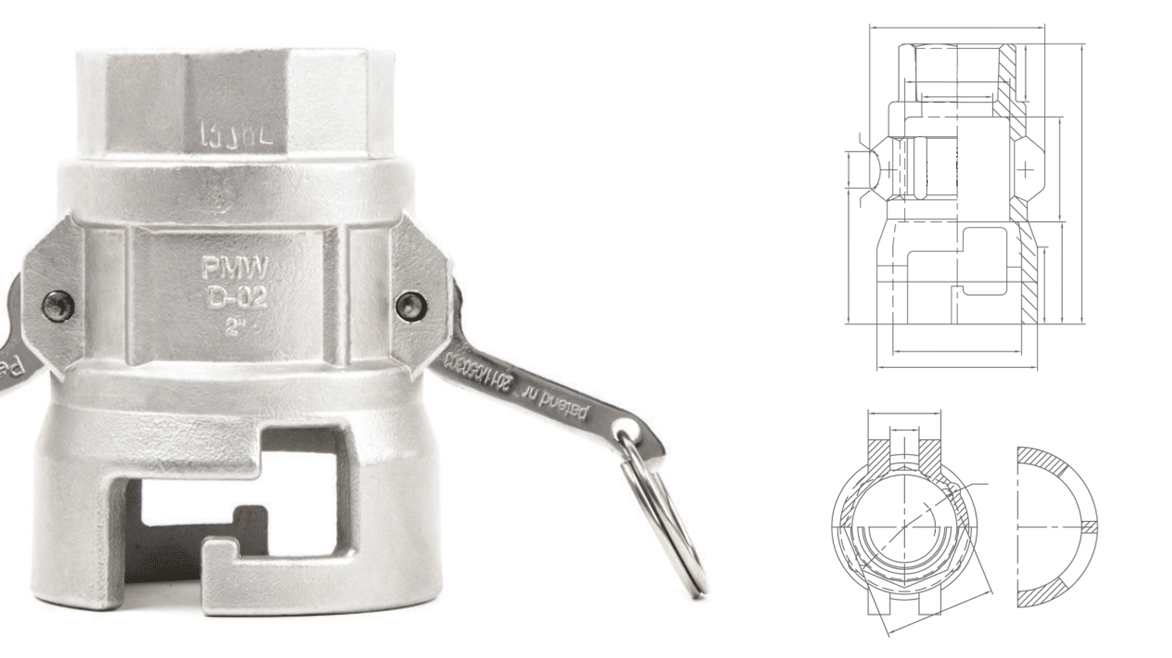

Bajolock type D
Type Female with female taper thread
Material AISI316L
Diameters 1” - 2” - 3”
Pressure -0.8 till 10 bar
Temperature -29 till 65C		Bajolock type D
Download brochure
Inquiry
Bajolock type DP (dustplug)
Type Dustplug
Material AISI316L
Diameters 1” - 2” - 3”
Pressure -0.8 till 10 bar
Temperature -29 till 65C		Bajolock type DP
Download brochure
Inquiry
Bajolock type DC (dustcap)
Type Dustcap
Material AISI316L
Diameters 1” - 2” - 3”
Pressure -0.8 till 10 bar
Temperature -29 till 65C		Bajolock type DC
Download brochure
Inquiry
